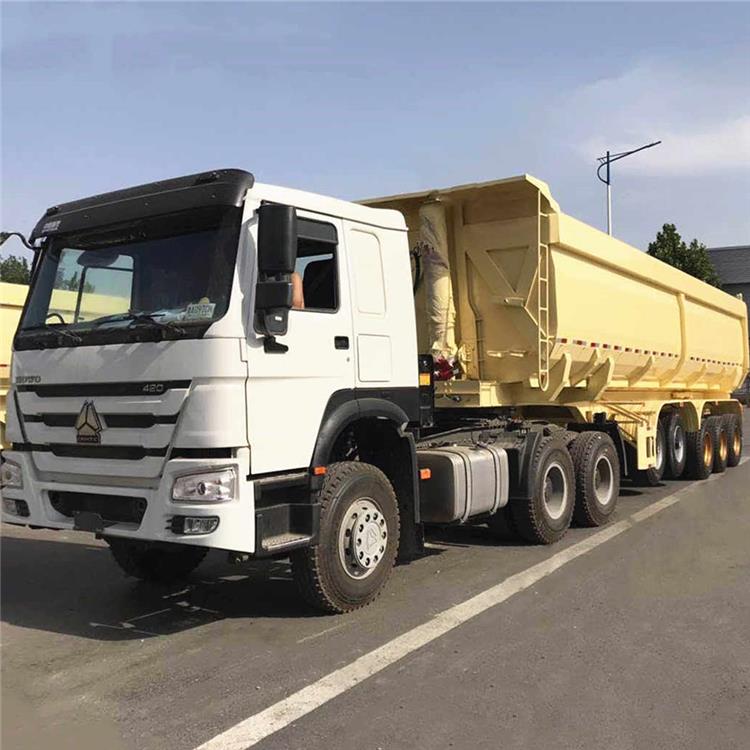

5 Axle Dump Truck Trailer

Dump Truck Trailer Description：

Bhachu dump truck trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. Bhachu dump truck trailer equipped with reliable hydraulic cylinder.

And the loading capacity is 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose from.

We can customize the dump truck trailers according to your special need, like Bhachu U shape dump, end dump, side tipper, and container tippers.

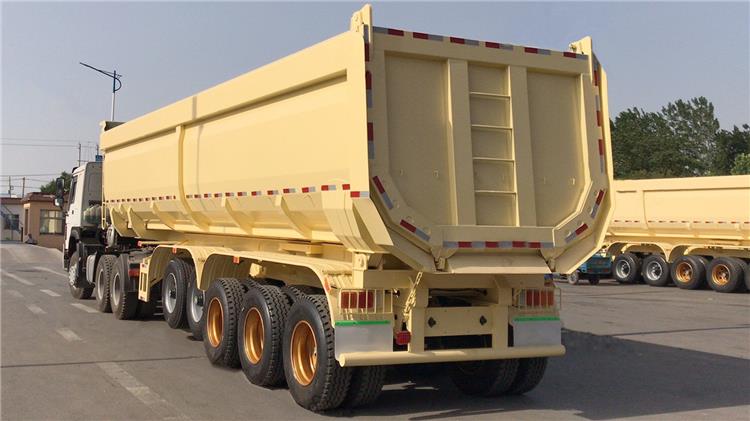

Bhachu 5 Axle Dump Truck Trailer - 80 Ton Dumper Trailer Price

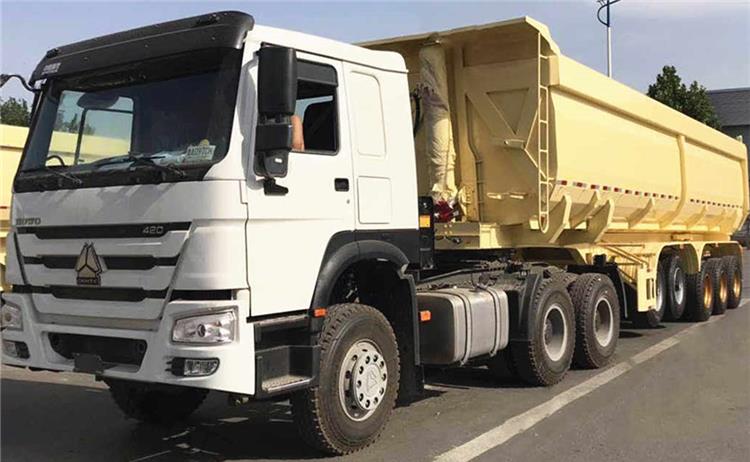

Bhachu 5 Axle Dump Truck Trailer - 80 Ton Dumper Trailer Price

Dump Truck Trailer Specification：

Dimension: 11000mm * 2500mm *4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(ton): 80 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.
