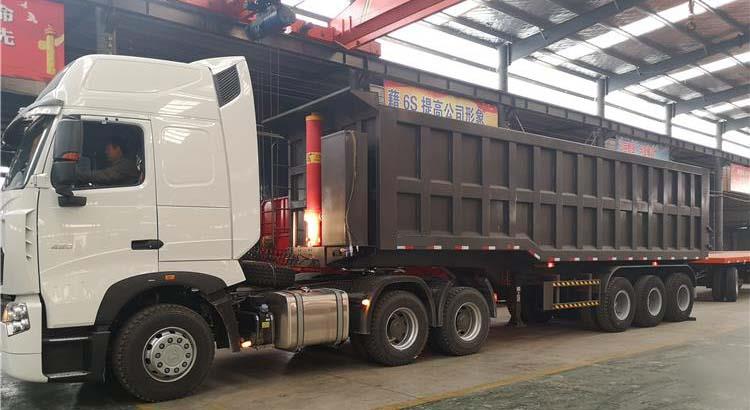

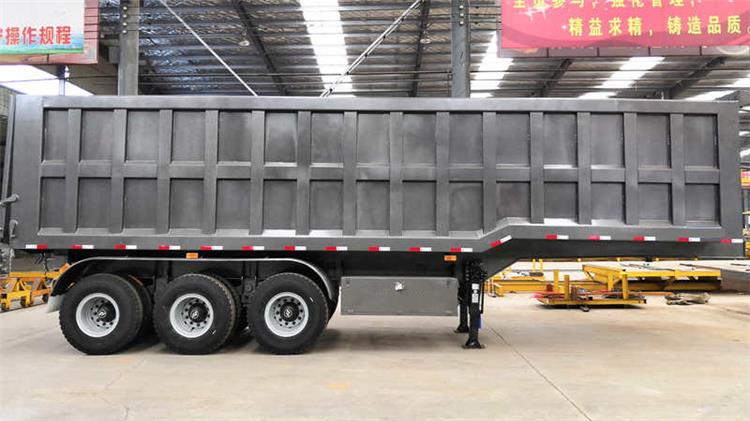

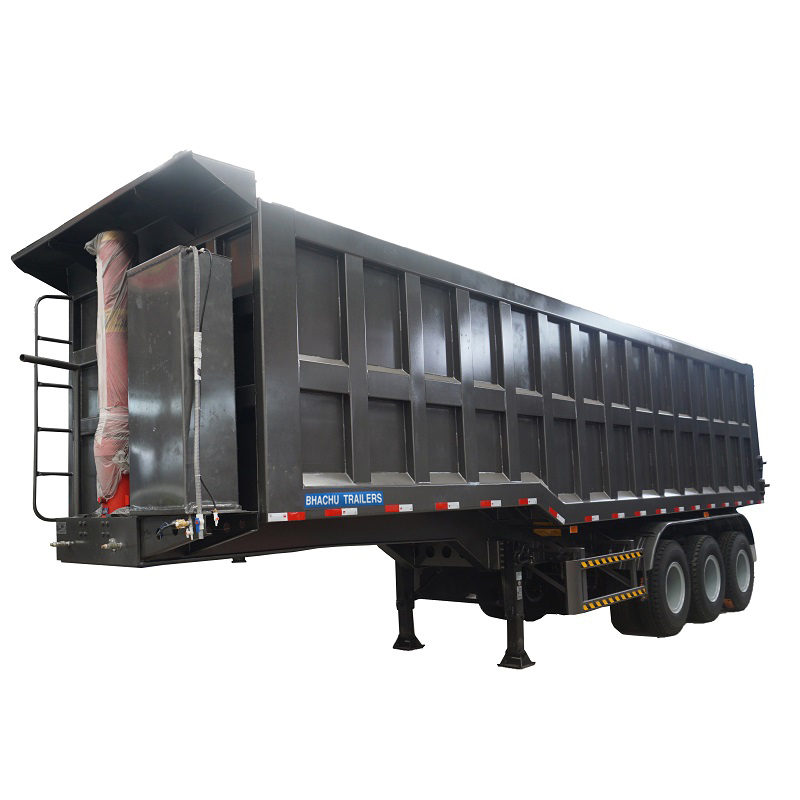

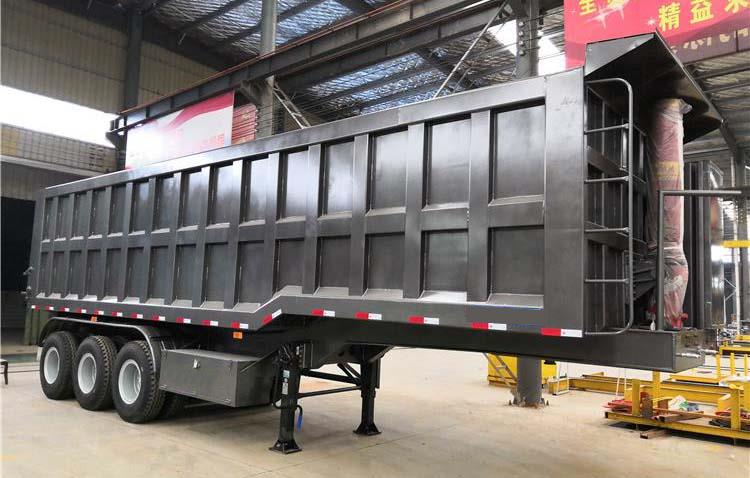

80 Ton Tractor Tipper Trailer

Tractor Tipper Trailer Description:

80 ton tractor tipper trailer is also called dump trucks, dumper trailer, side tipper, tipper semi trailer, Scrap dump Trailer.

In civil engineering, 80 ton tractor tipper trailer often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The 80 ton tractor tipper trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader. The 80 ton tractor tipper trailer carriage is inclined at a certain angle, so that the cargo in the carriage is unloaded. The power of the dump truck trailer engine is used to complete the dumping mechanism.

Bhachu Tractor Tipper Trailer adopts Bhachu axles with 16 tons of brake pads. And other factories usually use 13 tons axles. We have more than 9 years of production experience on Bhachu axles, it has better performance on loading capacity and braking.

80 Ton Tractor Tipper Trailer for Sale In Kenya Nairobi | Bhachu Industries Ltd

80 Ton Tractor Tipper Trailer for Sale In Kenya Nairobi | Bhachu Industries Ltd

80 Ton Tractor Tipper Trailer for Sale In Kenya Nairobi | Bhachu Industries Ltd

Specification：

Dimension: 9000mmx2500mm x3960mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(ton): 80 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
