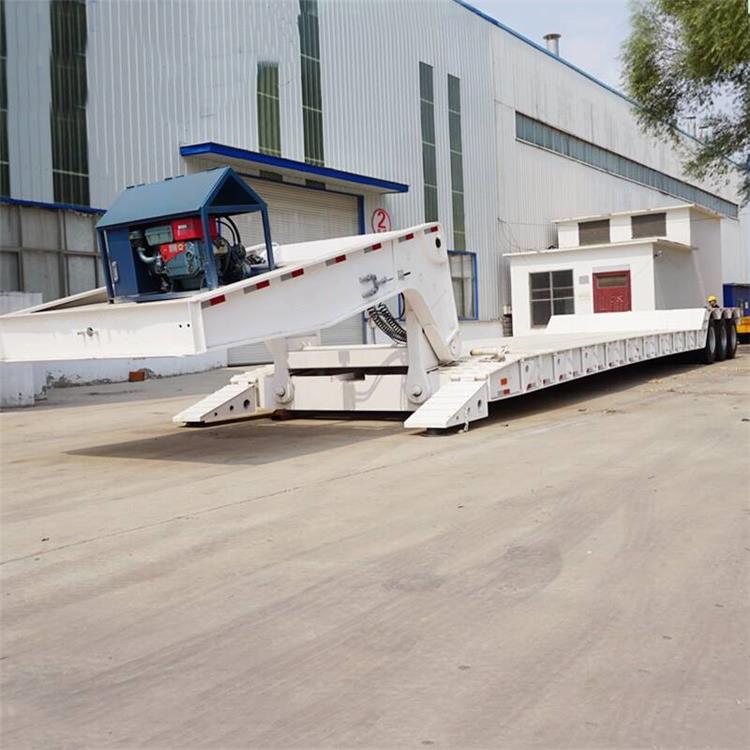

100 Ton Detachable Goose Neck Trailer

100 Ton Detachable Goose Neck Trailer Description:

The mining lowboy trailer uses a concave beam type. Detachable goose neck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.

Bhachu100 ton hydraulic gooseneck trailer main beam of Bhachu is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel.

Bhachu can make the 2/3/4 axles detachable gooseneck trailer, lowboy trailers and 3 lines 6 axles heavy duty mining lowboy trailer, with the capacity of 60/80/100/120/150 ton. To meet your transport needs and your local regulations, we can customize different configurations 80 ton hydraulic gooseneck trailer for you.

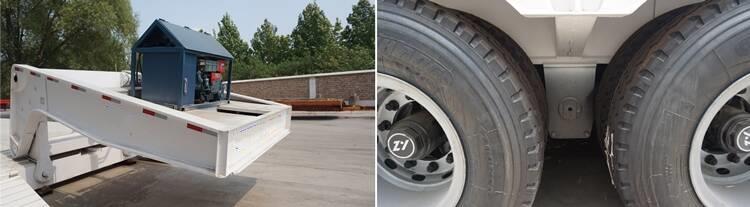

Bhachu 100 Ton Detachable Goose Neck Trailer for Sale Near Me In Kenya

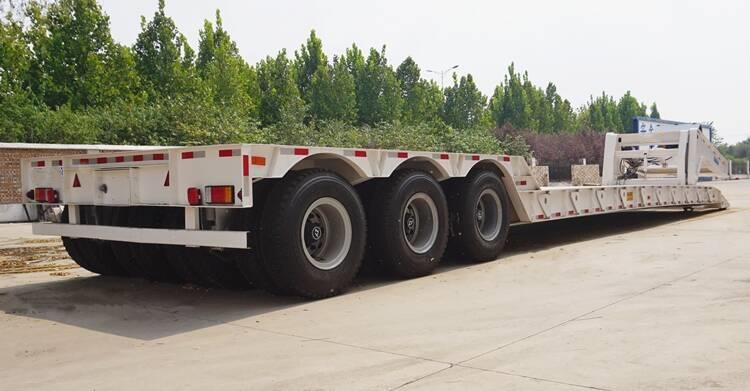

Bhachu 100 Ton Detachable Goose Neck Trailer for Sale Near Me In Kenya

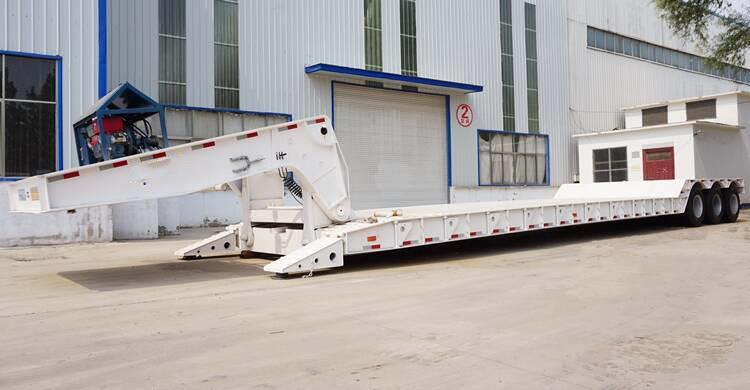

Bhachu 100 Ton Detachable Goose Neck Trailer for Sale Near Me In Kenya

Specification:

Overall dimension：17000mm * 3000mm *2500mm

Loading capacity:  100 ton

Axles：3 lines 6 axles

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)

Voltage: 24V

Toolbox: 1 set

Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust
