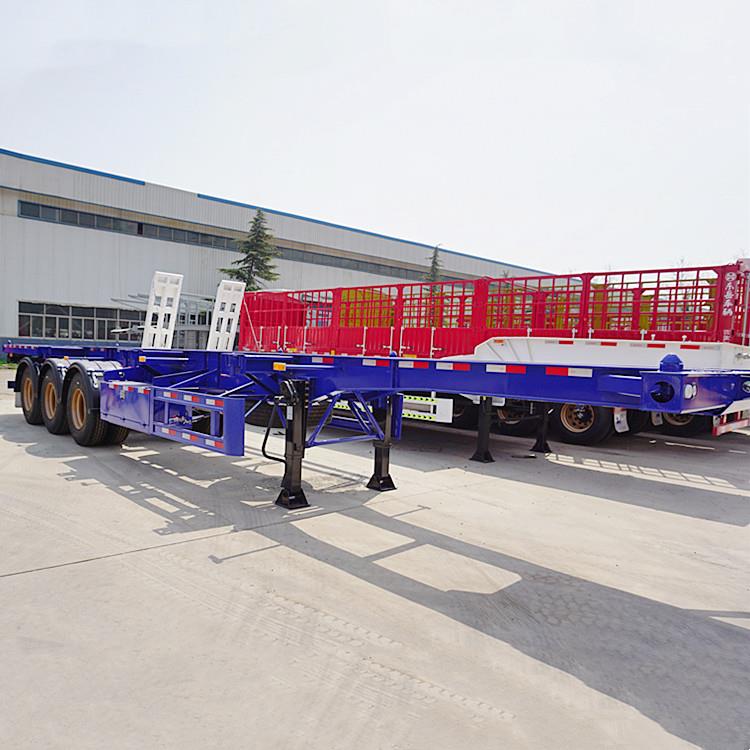

40 ft Chassis Skeleton Trailer

40 ft Chassis Skeleton Trailer

8500 USD

Bhachu 40 ft chassis skeleton trailer is used to transport containers, and container chassis trailers have different shapes and sizes.

40 ft Chassis Skeleton Trailer Description:

Bhachu 40 ft chassis skeleton trailer is used to transport containers, and container chassis trailers have different shapes and sizes. 40 ft chassis skeleton trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.

Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks they may, all the accessories have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength.

Bhachu 40 ft chassis skeleton trailer fast loading and unloading, and can be directly and easily from one vehicle to another vehicle facelift.

Bhachu Tri Axle 40 ft Chassis Skeleton Trailer for Sale In Tanzania

Bhachu Tri Axle 40 ft Chassis Skeleton Trailer for Sale In Tanzania

Bhachu Tri Axle 40 ft Chassis Skeleton Trailer for Sale In Tanzania

Bhachu Tri Axle 40 ft Chassis Skeleton Trailer for Sale In Tanzania

Bhachu Tri Axle 40 ft Chassis Skeleton Trailer for Sale In Tanzania

Bhachu Tri Axle 40 ft Chassis Skeleton Trailer for Sale In Tanzania



Specification:

Tare Weight: About 7.1T

Dimension(mm): 12400x2500x1500mm(3 or 2 axles) 40ft/ 6200x2500x1500mm(2 axles)20ft

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inches (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (especially intended for oversea market)

ABS: Optional

Light: LED light (especially intended for the oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats

Tool Box: 1m x 0.5m x 0.5m (The toolbox contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
