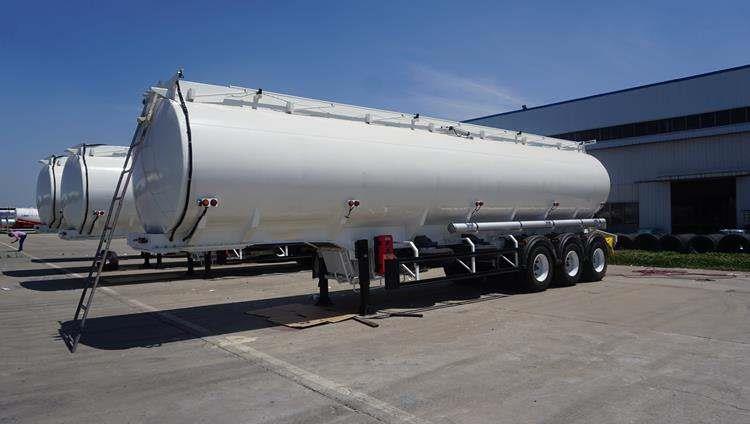

42000 Liters Oil Tanker Trailer

Product Description:

Bhachu 42000 Liters Oil Tanker Trailer Emphasis on safety device: The can lid is an explosion-proof large cover. After the Bhachu 42000 Liters Oil Tanker Trailer collides and rolls, the can lid will not open. The bottom of the tank is marked with a PK mark. A cost of 200 US dollars.

Bhachu 42000 Liters Oil Tanker Trailer tanker body uses longitudinal welding technology, the tank has only four longitudinal welds, reducing the risk of welding. If the collision occurs inadvertently, the Tri Axle Diesel Tanker Trailer for sale will not crack. Ensure the safety of the tanker and increase the service life.

Bhachu 42000 L Oil Tanker Trailer for Sale in Kenya - Bhachu Trailers for Sale

Bhachu 42000 L Oil Tanker Trailer for Sale in Kenya - Bhachu Trailers for Sale

Bhachu 42000 L Oil Tanker Trailer for Sale in Kenya - Bhachu Trailers for Sale

Specification：

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(liters): 42000 liters

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Tips about oil trailer:

What are the causes of the Bhachu Tri Axle Diesel Tanker Trailer for sale brake failure?

Learn more about the various aspects of the car, You can solve problems at critical moments and even save yourself.

Lack of necessary maintenance on the brake system, too many impurities, too much brake oil, or a mixture of brake fluids, resulting in oil leakage and air leakage.

Because of the mistakes in the operation, causing brake failure

Due to the serious overload, the inertia of the Bhachu oil trailer is increased, resulting in brake failure.
