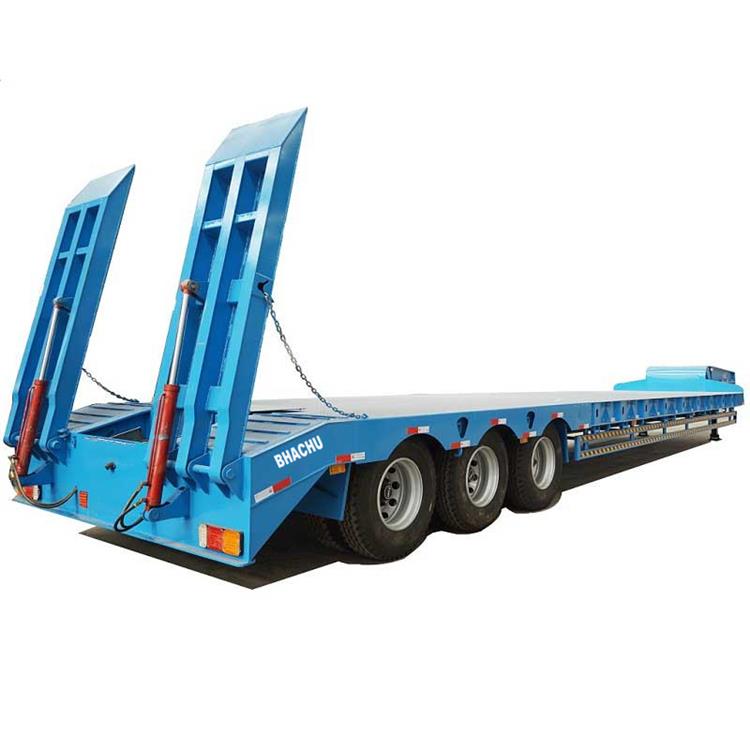

80 Ton Lowbed Semi Trailers

80 Ton Lowbed Semi Trailers Description

The Bhachu 80 ton lowbed semi trailers can be designed to carry 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons, and 150 tons. It's main cargo platform is low, which ensures the stability of transportation. Lowbed Trailer can also carry a wide range of goods, which is suitable for the transportation of various steels such as a variety of mechanical equipment, large objects, highway construction equipment, power station equipment and machinery.

Bhachu 80 ton lowbed semi trailers main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity of equipment trailer.The 80 ton lowbed semi trailers main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.

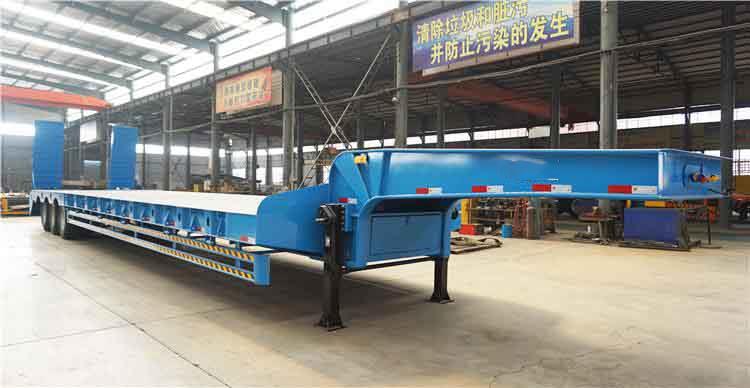

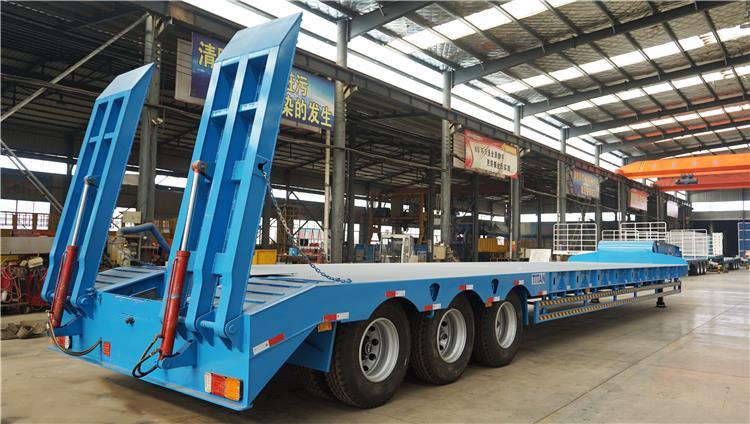

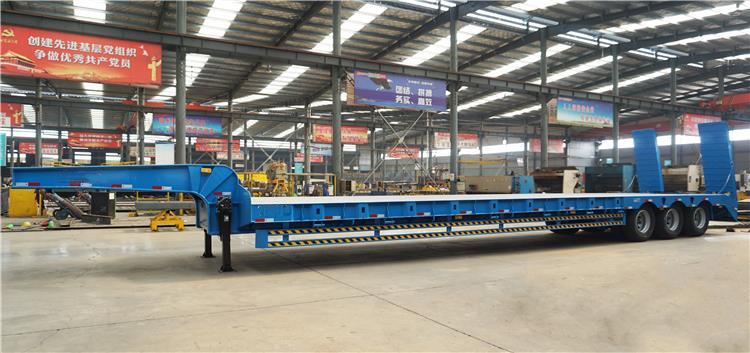

Bhachu 3 Axle 80 Ton Lowbed Semi Trailers for Sale In Kenya Nyeri

Bhachu 3 Axle 80 Ton Lowbed Semi Trailers for Sale In Kenya Nyeri

Bhachu 3 Axle 80 Ton Lowbed Semi Trailers for Sale In Kenya Nyeri

Specification of lowbed semi trailer:

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)
