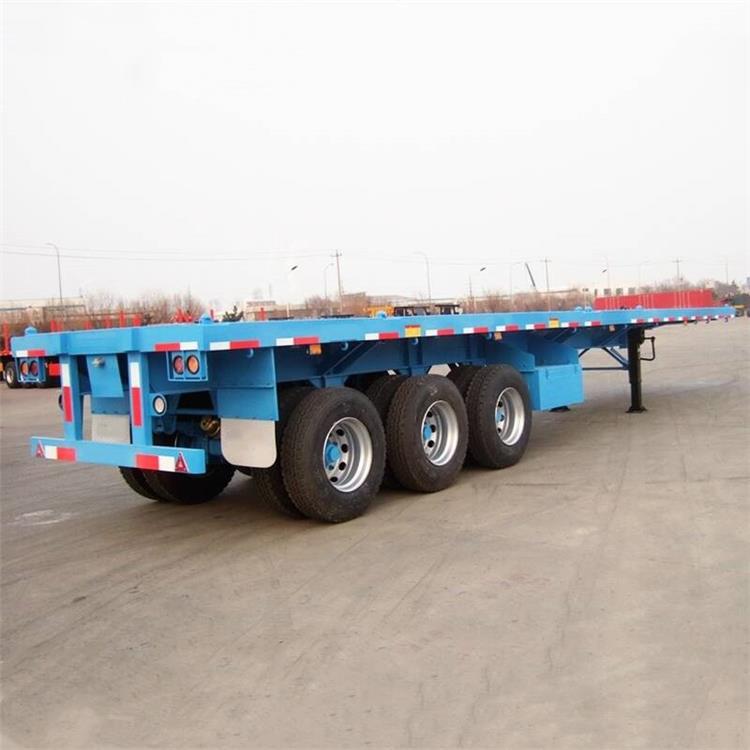

3 Axle Flatbed Tractor Trailer

Flatbed Tractor Trailer Description：

3 Axle flatbed tractor trailer uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

Flatbed 40 ft trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

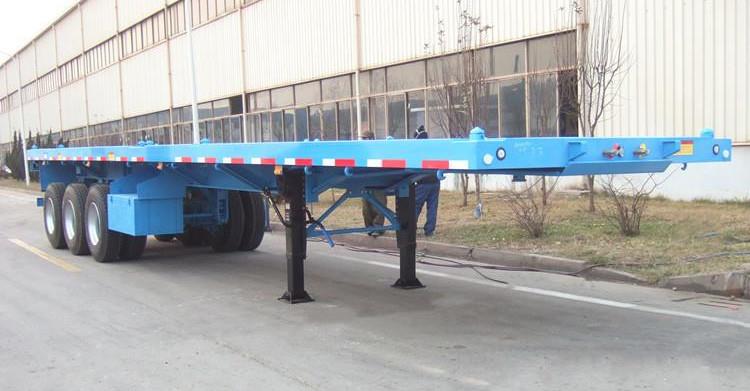

Bhachu 3 Axle Flatbed Tractor Trailer | 40 ft Container Flatbed Trailer for Sale

Bhachu 3 Axle Flatbed Tractor Trailer | 40 ft Container Flatbed Trailer for Sale

Bhachu 3 Axle Flatbed Tractor Trailer | 40 ft Container Flatbed Trailer for Sale

Specification:

Model: 3 Axle Flatbed Tractor Trailer

Dimension(mm): 12500x2500x1530mm

Loading capacity(ton): ≤80T

Axles: 3 axles, 13T

Tire: 12 units, 12.00R22.5

Rim: 9.00-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: 28tons

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16# channel steel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 12 sets

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Advantage:

1. Bhachu 3 axle flatbed tractor trailer adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also 3 axle flatbed tractor trailer is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safe.

4. polyurethane paint, the 3 axle flatbed tractor trailer is more beautiful, effective protection of the body against rust, extends the life of the vehicle.

5. Hight Quality container locks, make sure the stability and safety of the loads.
